D5 Thunderbolt3

Description

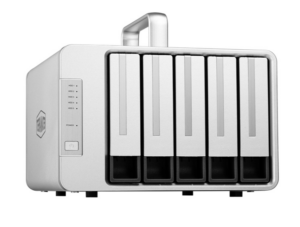

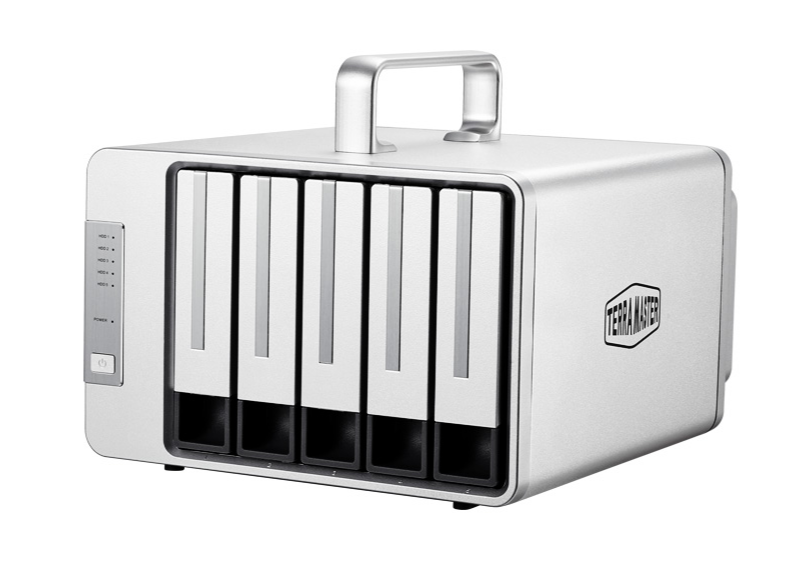

D5 Thunderbolt 3
5-Bay Professional-Grade Raid
40Gbps 1035MB/S

Large Storage Capacity

TerraMaster’s 5-bay D5 Thunderbolt 3 is compatible with 3.5″ SATA disks and 2.5″ SSDs, allowing professionals to capitalise on a total storage capacity of up to 90TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.

Lightning Speed!

The D5 Thunderbolt 3 is equipped with a 40-Gbps lightning speed interface, and the read and write support attains speeds of up to 1,035 MB/s (test conditions: 5 HDDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt™ 3 devices, and each one can be realized using the Thunderbolt interface.

Dedicated DP Interface

Given its HD DP digital interface, video editors can connect the D5 Thunderbolt 3 to a 4K HD display to satisfy their needs.

Multi-Screen Display

Capitalising on the Thunderbolt 3 and DP interfaces, the D5 Thunderbolt 3 supports multi-screen display with up to 3 screens. This is an ideal solution for multitaskers, especially when efficiency is the end goal.

Multiple RAID Supports

The D5 Thunderbolt 3 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.

Professional and Safe

Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D5 Thunderbolt 3, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.



Compatible with multiple arrays in one device Online RAID Level Migration (ORLM)
RAID Online Capacity Expansion (OCE) Compatible with hot swapping and hot plugging
Automatic drive (insert / removal) detection Supports hot spare disk
Hard disk NCQ (native command sort) technology Flash cache
Automatic RAID rebuild Multiple RAID initialization types
SHI (Storage Health Inspector – S.M.A.R.T.) Verifies RAID for bad sectors and parity check
Regular and automatic hard drive checks Bad sector repair and remapping
Spin down idle mode Alert notifications via email
Staggered drive spin up Event log
The Ideal Companion for All Professionals

Given its compactness, its large storage capacity, and its lightning speed, the D5 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.

Authoritative Quality Certification

Both Apple and Intel have certified the D5 Thunderbolt 3’s design and performance, ensuring the device’s consistent performance and reliability.

Exclusive worry-free warranty

Brand new replacement for 2 years, quick service in 24 hours!

Storage:
Disk Slot Number 5
Compatible Disk Types 3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD

File System:
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
Maximum Internal Raw Capacity 80TB (16 TB drive x 5) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,JBOD,RAID 0,RAID 1,RAID5,RAID10
Note: Mac 0S computers do not support RAlD online expansion and migration.

Hardware RAID √
RAID Manager Software √
RAID Manager Software Language English, Chineses, Japanese
RAID Online Expansion √
RAID Migration √
RAID Auto-rebuilding √
Drive Hot Swap √
HDD Sleep √
HDD S.M.A.R.T. Inspection √
Sector Inspection and Parity Check √
SSC Cache √
Daisy Chain √
HDD NCQ Technology √
Alert Notice √
Event Log √

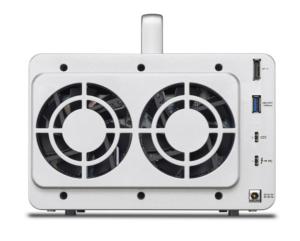

External Ports:
USB /
Thunderbolt Data Transmission 40Gb Thunderbolt 3 x 1
Thunderbolt Daisy Chain 40Gb Thunderbolt 3 x 1
USB Host USB 3.1 Gen2 host (Use to connect USB storage device)
DP Interface DP 1.4 x 1
Power Socket DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.) Read: 1035MB/sec(Use HDD under RAID 0 mode)
Read: 830MB/sec(Use HDD under RAID 5 mode)
Writing Speed (max.) Write: 917MB/sec(Use HDD under RAID 0 mode)
Write: 850MB/sec(Use HDD under RAID 5 mode)

Appearance:
Size (H*W*D) 227 x 225 x 176 mm
Packaging Size (H*W*D) 300*275*210 mm
Weight Net Weight: 2.3Kg Gross Weight: 3.5Kg
Others
System fan 80 mm x 80 mm x25mm (x 2)
Fan mode Smart
Noise Level 19.8dB(A)
Power Supply
Power Supply 120W
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 HZ, Single Phase
Power Consumption 76.8W(Access)

Environment Temperature:
Working Temperature 5°C ~ 40°C (40°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS、Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance

Package Contents:
Host unit (x1)
Power cord (x1)
Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1)
Quick Installation Guide (x1)
Power adapter (x1)
Screws (several)
Limited Warranty Note x 1
