D8-332 Thunderbolt3

Description

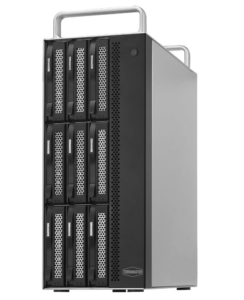

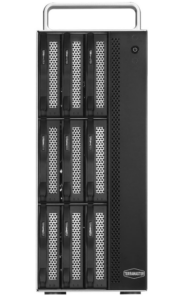

D8-332

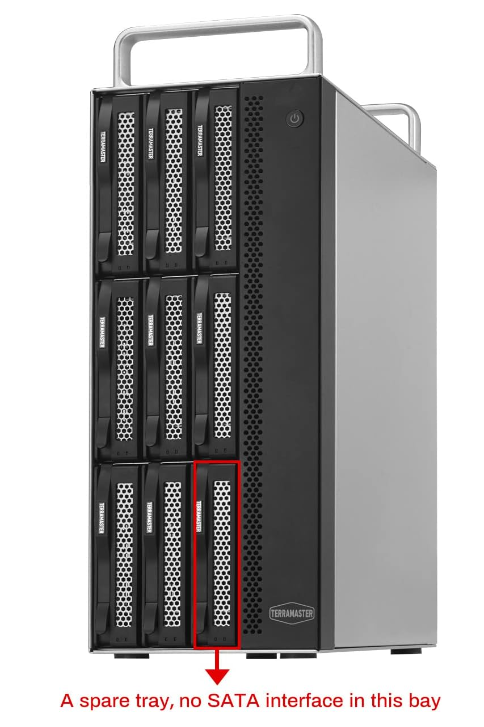

8-Bay Professional-Grade RAID

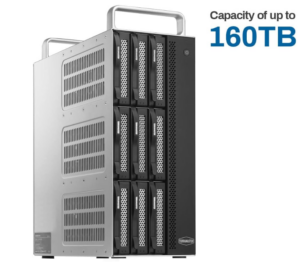

Large Storage Capacity

TerraMaster’s 8-bay D8-332 is compatible with 3.5″ SATA disks and 2.5″ SSDs, allowing professionals to capitalise on a total storage capacity of up to 160TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.

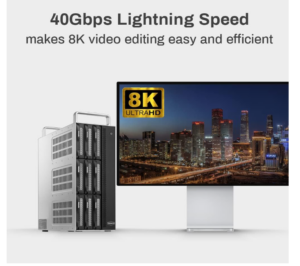

Lightning-Fast

Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the D8-332 can operate at transfer speeds of 1600 MB/s under a 7200 RPM high-speed hard disk and RAID 0 array mode. Under RAID 5, the device can achieve a speed of 1440 MB/s.

Enjoy Rapid Video Workflows

The time needed for virtually every aspect of the post-production workflow falls when using the D8-332. At lightning speed, users can transfer several hours of footage from a Blackmagic® device to Adobe® Premiere Pro. In turn, with uncompressed HD 10-bit and 12-bit video, users can edit the ProRes 422 (HQ), ProRes 4444 XQ, and other data streams. Thumbnails and preview rendering are significantly more responsive when using large items with numerous high-definition clips.

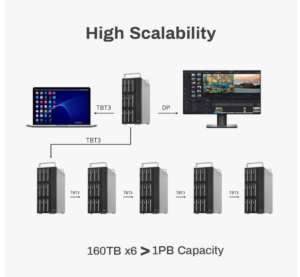

High Scalability

Using one cable, Thunderbolt 3 enables users to daisy-chain more than five devices to their computer. As a result, users can achieve an enormous 800 TB capacity by linking together six D8-332 devices.

Thunderbolt 3 and Thunderbolt 2 Compatibility (for Mac only)

If your Mac has Thunderbolt 3 and Thunderbolt 2 ports, you can capitalise on the D8-332 to achieve high-end transfer rates. With Apple’s Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter (not sold with the D8-332), compatibility between the D8-332 and earlier Thunderbolt technologies is straightforwardly achieved.

Perfectly Suited for the Most Demanding Video Professionals

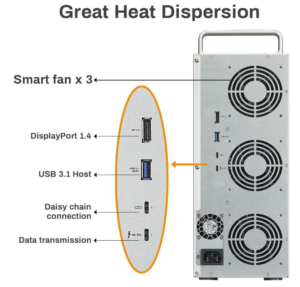

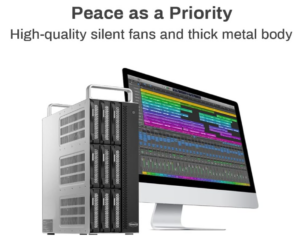

With its aluminium casing, metal build, and 80-mm inbuilt temperature-controlled smart fans, full heat dissipation of the D8-332 is assured for those video professionals working long hours.

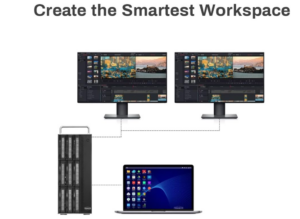

Create the Smartest Workspace

A key feature of Thunderbolt 3 is its bandwidth capacity, which has been doubled since Thunderbolt 2. At the same time, the D8-332 benefits from a HD DP digital interface and a pair of Thunderbolt 3 interfaces. By daisy-chaining two 4K displays (or one 5K display) to the D8-332, users can augment their workspace in the smartest and most suitable way for their professional needs. Additionally, using Thunderbolt 3 connections, users can even power a compatible notebook computer.

Multiple RAID Supports

The D8-332 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.

Professional and Safe

Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D8-332, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.

Compatible with multiple arrays in one device Online RAID Level Migration (ORLM)
RAID Online Capacity Expansion (OCE) Compatible with hot swapping and hot plugging
Automatic drive (insert / removal) detection Supports hot spare disk
Hard disk NCQ (native command sort) technology Flash cache
Automatic RAID rebuild Multiple RAID initialization types
SHI (Storage Health Inspector – S.M.A.R.T.) Verifies RAID for bad sectors and parity check
Regular and automatic hard drive checks Bad sector repair and remapping
Spin down idle mode Alert notifications via email
Staggered drive spin up Event log

The Ideal Companion for All Professionals

Given its compactness, its large storage capacity, and its lightning speed, the D8-332 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.

Authoritative Quality Certification

Both Apple and Intel have certified the D8-332’s design and performance, ensuring the device’s consistent performance and reliability.

Storage:
Processor Model INTEL JHL7440 + Marvell 88SE9485
Disk Slot Number 8
Compatible Disk Types 3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
File System:
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
Maximum Internal Raw Capacity 160 TB (20 TB drive x 8) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10
Note: Mac 0S computers do not support RAlD online expansion and migration.

Power Resume /
Hardware RAID √
RAID Manager Software √
RAID Manager Software Language English, Chineses, Japanese
RAID Online Expansion √
RAID Migration √
RAID Auto-rebuilding √
Drive Hot Swap √
The hard drive hibernates as the computer system hibernates /
The hard drive is scheduled to hibernate /
HDD S.M.A.R.T. Inspection √
Sector Inspection and Parity Check √
SSD Cache √
Daisy Chain √
HDD NCQ Technology √
Alert Notice √
Event Log √

External Ports:
USB Device /
USB Host USB 3.1 Gen2 host (Use to connect USB storage device)
Thunderbolt Data Transmission 40Gb Thunderbolt 3 x 1
Thunderbolt Daisy Chain 40Gb Thunderbolt 3 x 1
DP Interface DP 1.4 x 1
RAID switch /
Power Socket AC IN 220V
Reading/writing Speed (max.)
Reading Speed (max.) Read: 1600MB/sec
Writing Speed (max.) Write:1380MB/sec (Use SSD under RAID 0 mode)

Appearance:
Size (H*W*D) 334 x 135 x 295 mm
Packaging Size (H*W*D) 467 x 225 x 390 mm
Weight net weight: Kg Gross Weight: Kg

Others:
System fan 80 mm x 80 mm x25mm 3 pcs
Fan mode Smart
Noise Level 31.2 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state)
Power Supply
Power Supply 250 W
Redundancy Power Supply /
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 HZ, Single Phase
Power Consumption 96.8W(Access)
Environment Temperature
Working Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS、Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance

Package Contents:
Host unit (x1)
Power cord (x1)
Thunderbolt 3 cable (40Gbps) 2 Meter (x1)
Quick Installation Guide (x1)
/
Screws (several)
Limited Warranty Note x 1
